Overview

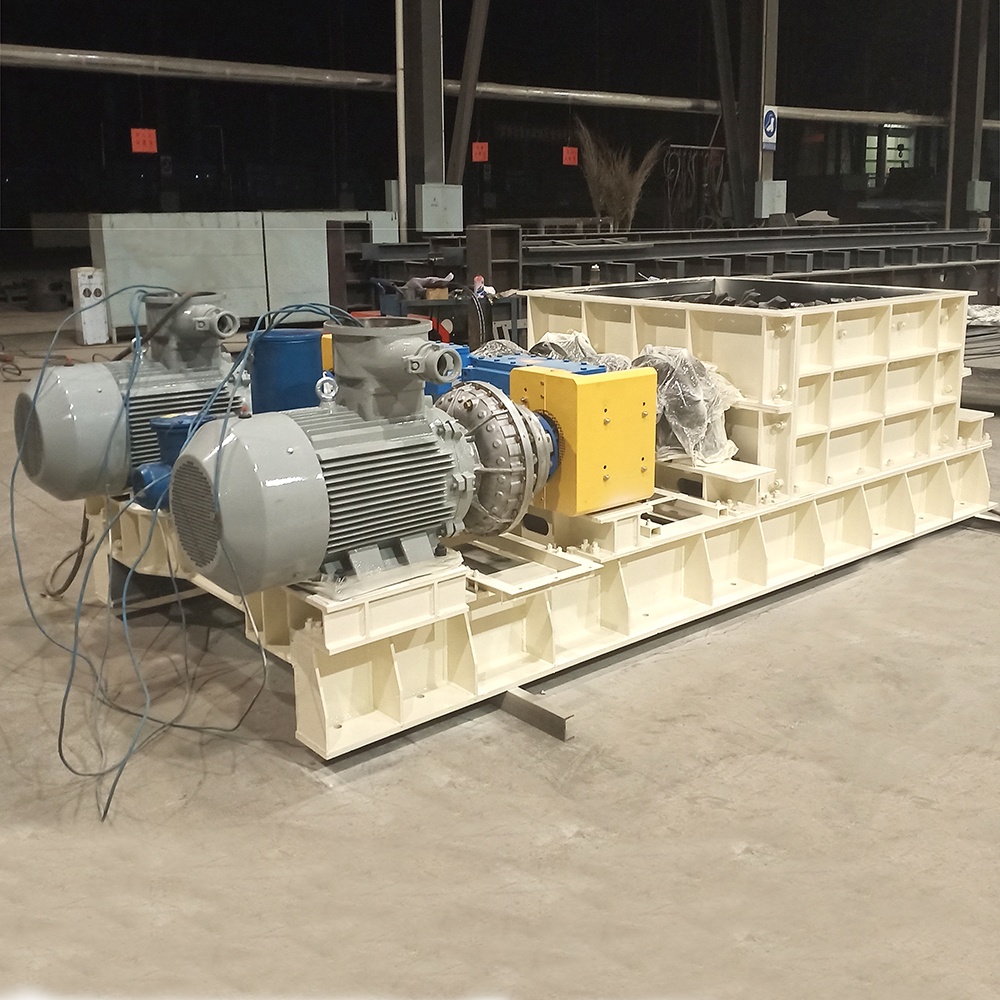

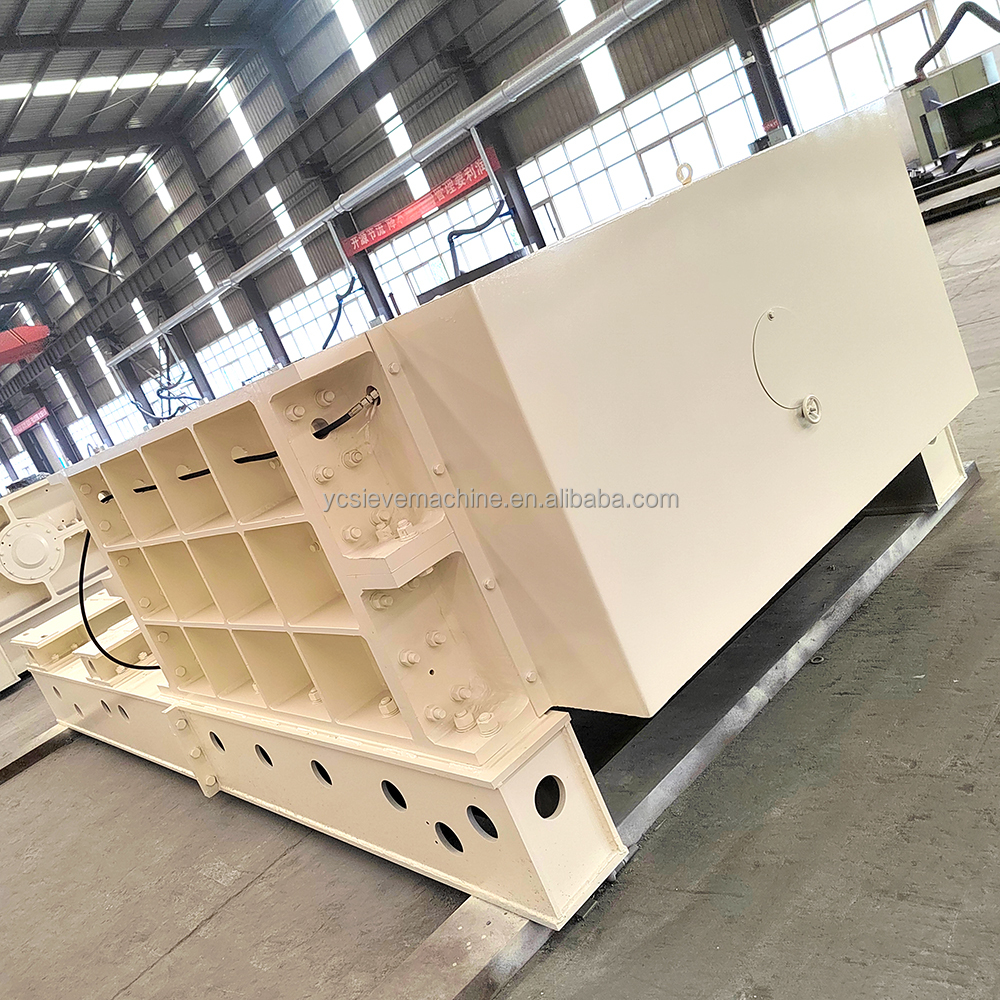

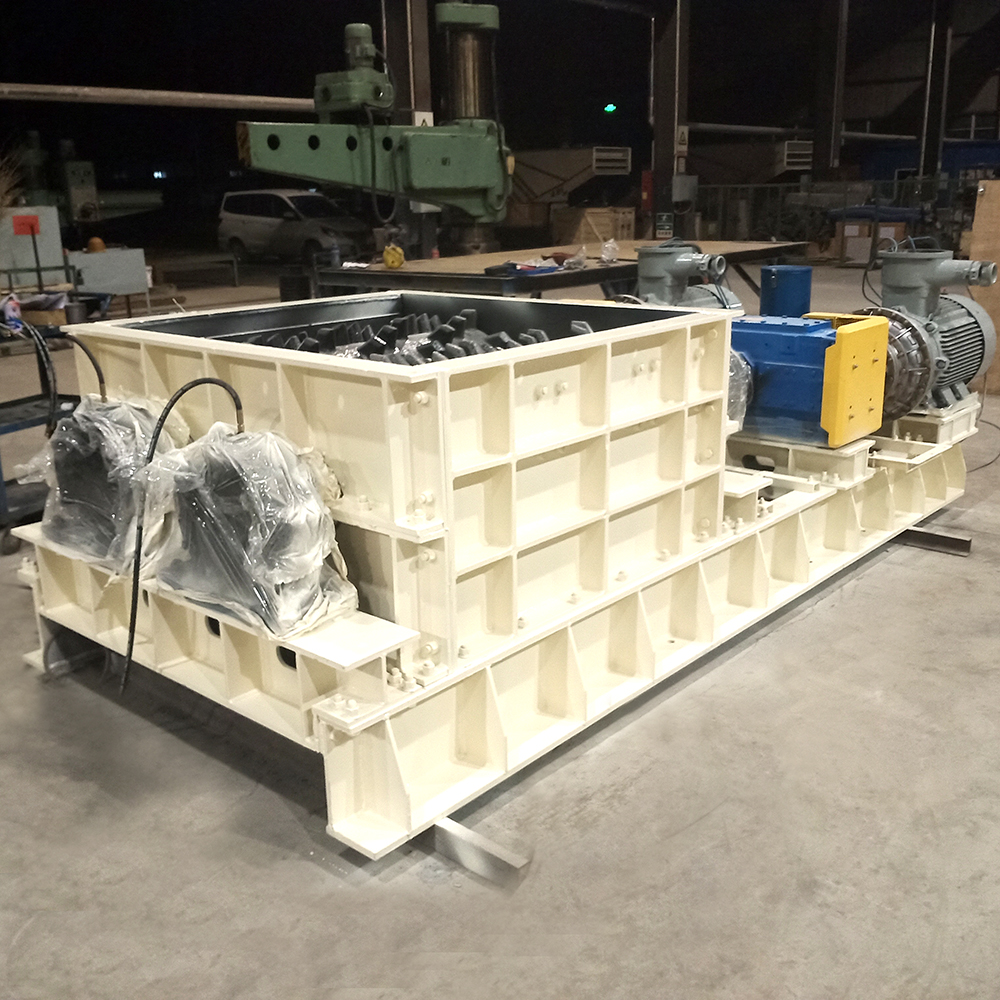

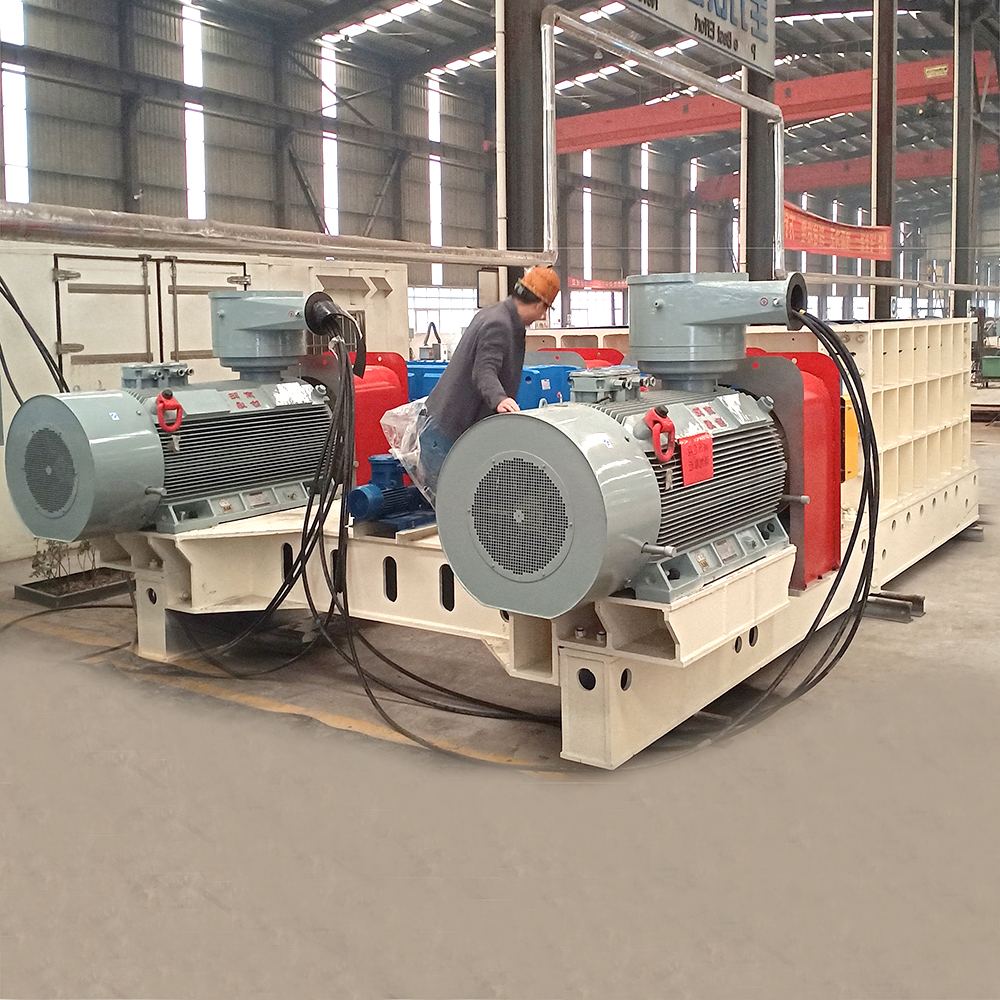

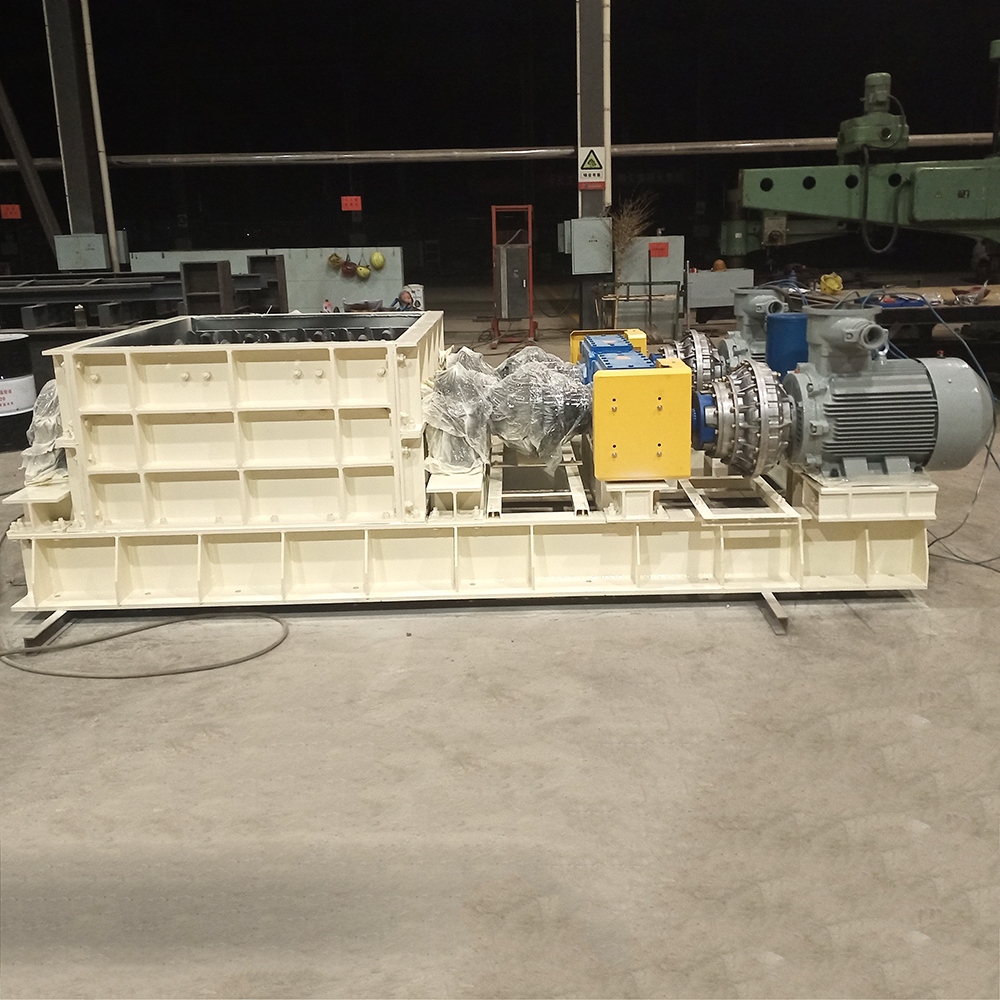

double roller crusher /coal crusher:
Product name : Double roller coal crusher for coal fired power plant
In put size 300—1500mm;
Out put size 150—500mm;
Large capacity,Max capacity with 10000t/h,with high efficiency, reliable running;
Crushing tooth with spiral arrangement,lump rate more than 95%;
Processed Material:
* Underground coal, thermal coal, steam coal, calcium carbonate , kerogen shale, granite, lignite, dolomite, coking coal ,baking
coal, crozzling coal, bituminous coal, soft coal ,filter cake of slime, oil shale, hard coal, Indonesian coal, coal Indonesia,
anthracite coal, black coal, sulfur coal, etc.
* Rock phosphate, fluorspar, talcum, granite, dolomite, silica quartz, pebble,cobblestone, slag, basalt, feldspar etc.
* Limestone, gypsum ,calcium carbonate, high calcium stone, blue stone, etc.
* Wet and sticky material: Clay, bauxite, nickel ore, etc.
* Construction waste,building rubbish

double roller crusher /coal crusher tooth material :
Tooth material: Babbitt abrasion-resistant alloy
Hardness: HRC45~50
Impact toughness:ak≥38kg·m/cm2
Material Characteristics: Special technology for tooth casting; it is the same material with tank caterpillar band which is with
high hardness, high toughness, high abrasion resistance, long service life and strong anti-impact; the service life is 2 or 3
times longer than others.
140 series grading teeth-roller crusher for coarse crushing
Specification/Model
2PLF-140/250
2PLF-140/300
2PLF-140/350
2PLF-140/400
Inlet size(mm)
<=1600
<=1600
<=1600
<=1600
Output size(mm)
<=400
<=400
<=400
<=400
Capacity(t/h)
<=6000
<=6000
<=6000
<=6000
120 series grading teeth-roller crusher for coarse crushing
Specification/Model
2PLF-120/150
2PLF-120/200
2PLF-120/250
2PLF-120/300
Inlet size(mm)
<=1500
<=1500
<=1500
<=1500
Output size(mm)
<=300
<=300
<=300
<=300
Capacity(t/h)
<=3000
<=4000
<=5000
<=6000
100 series grading teeth-roller crusher for coarse crushing
Specification/Model
2PLF-100/150
2PLF-100/200
2PLF-100/250
2PLF-100/300
Inlet size(mm)
<=1200
<=1200
<=1200
<=1200
Output size(mm)
<=300
<=300
<=300
<=300
Capacity(t/h)
<=2000
<=3000
<=4000
<=5000
80 series grading teeth-roller crusher for coarse crushing
Specification/Model
2PLF-80/150
2PLF-80/200
2PLF-80/250
2PLF-80/300
Inlet size(mm)
<=300
<=300
<=300
<=300
Output size(mm)
50-150
50-150
50-150
50-150
Capacity(t/h)
300-700
400-1000
600-1200
800-1500
