Product Detail
Ore Apron Plate Conveyor Apron Chain Slat Feeder
- Detail
- Parameters
Product descriptions from the supplier
Overview
Stable operation, low spare parts loss rate, easy to realize maintenance-free.
Excellent impact resistance
Performance Advantage Analysis

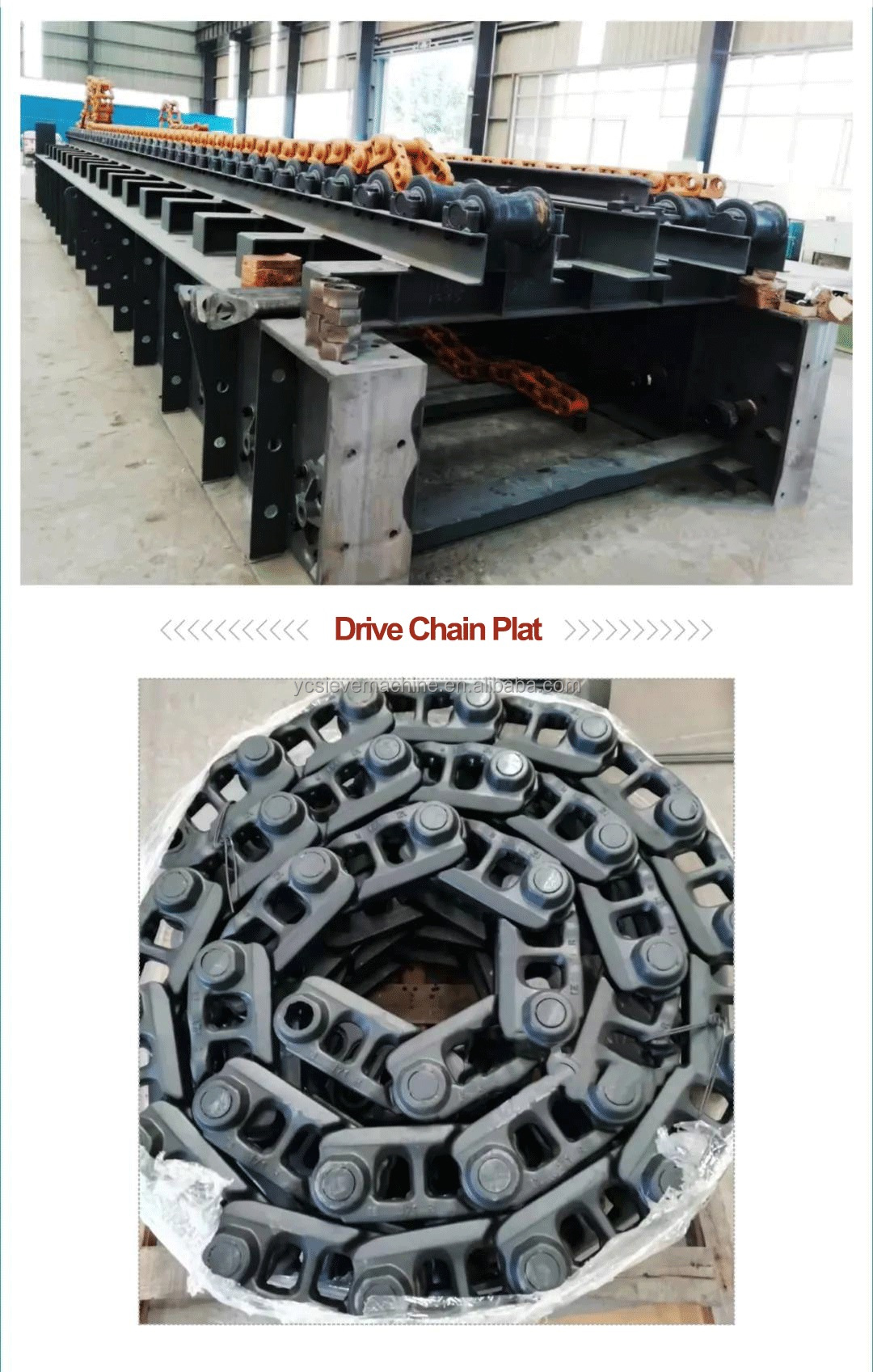

Drive chain with self-lubricating performance of the chain rail, in the long-term operation process can achieve their own
lubrication.

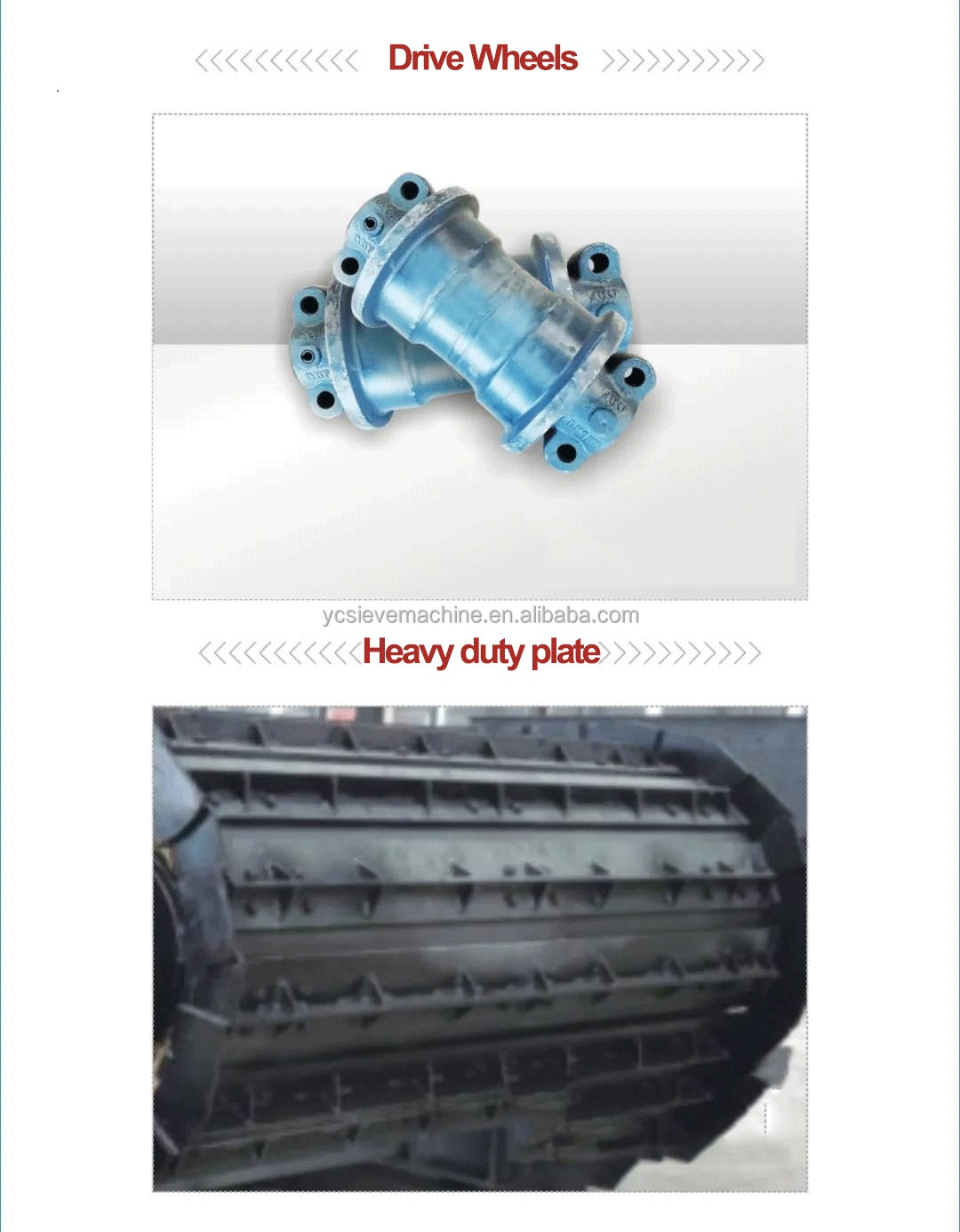

The chain plate is made of NM400 alloy wear-resisting steel plate.

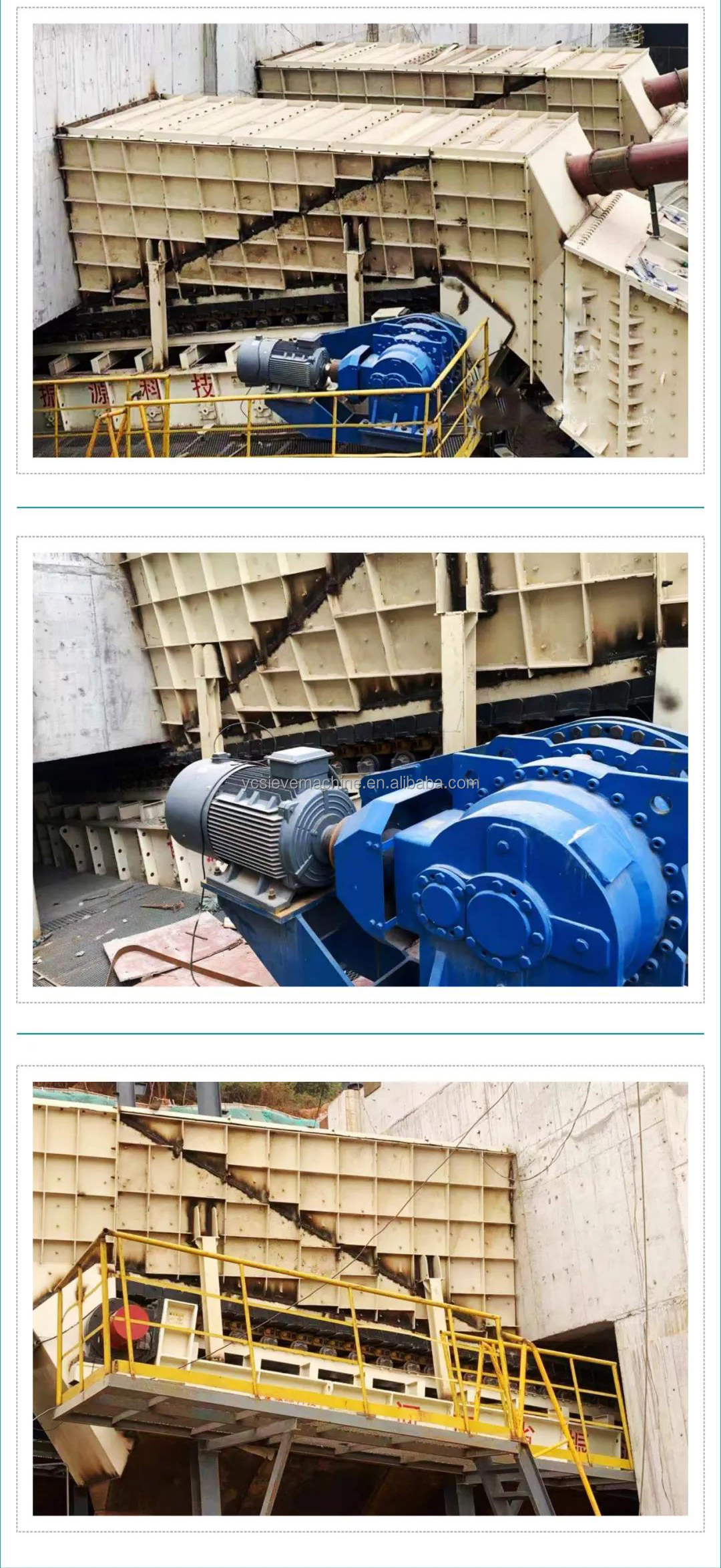

The driving device adopts the installation mode of the torque arm of the hollow shaft of the planetary reducer, and the daily maintenance is simple and quick.
Bearing roller adopts large bearing capacity bearing, with self-lubrication function, maintenance free during use.
The tail wheel adopts hydraulic automatic tensioning, which can realize remote tensioning according to the tension and the working conditions on site.
The driving device can use hydraulic motor, motor reducer and other different ways Intelligent: on-line test operation, lubrication system.The embedded sensor is used to realize the functions of pre-judgment decision, alarm, monitoring of equipment operation status, stopping feeding, self-recovery and other functions before overload protection, as well as bearing temperature measurement, speed measurement and other information.
Uses and Features
Used in all kinds of ore, construction aggregate, non-ferrous metals, coal and other industries.Using large bearing capacity
bearing, and self-lubricating function

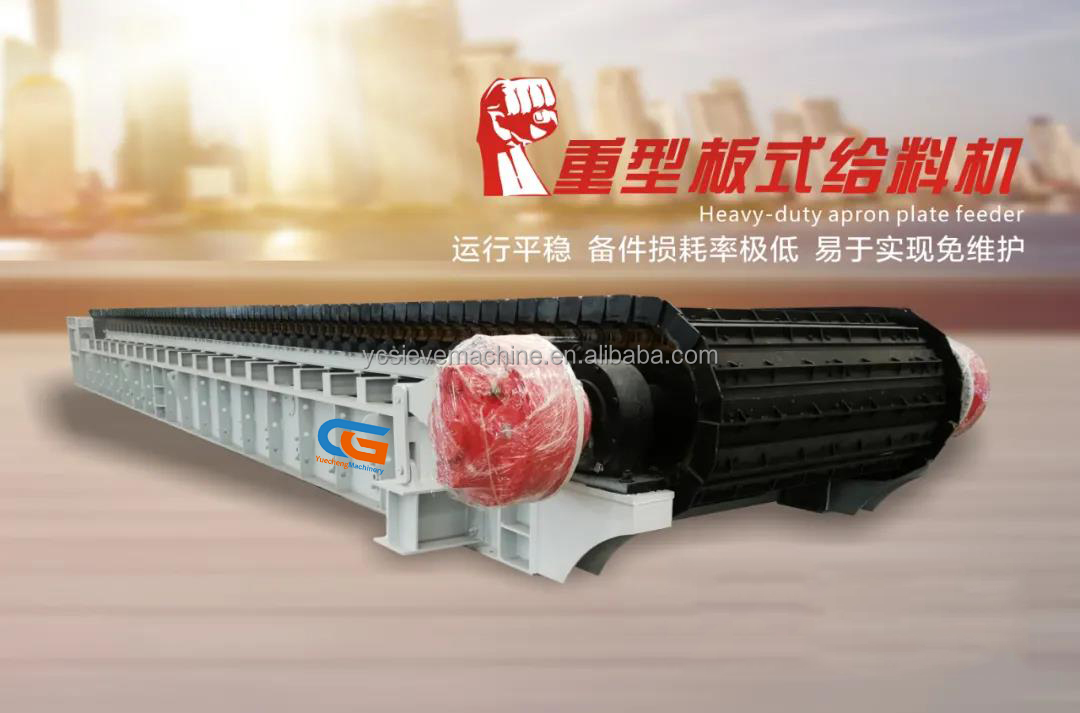

Heavy-duty plate feeder is suitable for feeding and conveying various bulk materials, widely used in various ores, construction aggregates, non-ferrous metals, coal and other industries.It has Excellent impact resistance, heavy load start, smooth feeding and other characteristics make it the preferred equipment in the industry.This equipment adopts low speed, large torque drive mode to determine its smooth operation, spare parts loss rate is very
low, easy to achieve maintenance-free, negative Angle installation can reduce the overall height requirements of the process, so it plays an important role in the process of large material processing system.
Excellent impact resistance
Performance Advantage Analysis
Drive chain with self-lubricating performance of the chain rail, in the long-term operation process can achieve their own
lubrication.
The chain plate is made of NM400 alloy wear-resisting steel plate.
The driving device adopts the installation mode of the torque arm of the hollow shaft of the planetary reducer, and the daily maintenance is simple and quick.
Bearing roller adopts large bearing capacity bearing, with self-lubrication function, maintenance free during use.
The tail wheel adopts hydraulic automatic tensioning, which can realize remote tensioning according to the tension and the working conditions on site.
The driving device can use hydraulic motor, motor reducer and other different ways Intelligent: on-line test operation, lubrication system.The embedded sensor is used to realize the functions of pre-judgment decision, alarm, monitoring of equipment operation status, stopping feeding, self-recovery and other functions before overload protection, as well as bearing temperature measurement, speed measurement and other information.
Uses and Features
Used in all kinds of ore, construction aggregate, non-ferrous metals, coal and other industries.Using large bearing capacity
bearing, and self-lubricating function
Heavy-duty plate feeder is suitable for feeding and conveying various bulk materials, widely used in various ores, construction aggregates, non-ferrous metals, coal and other industries.It has Excellent impact resistance, heavy load start, smooth feeding and other characteristics make it the preferred equipment in the industry.This equipment adopts low speed, large torque drive mode to determine its smooth operation, spare parts loss rate is very
low, easy to achieve maintenance-free, negative Angle installation can reduce the overall height requirements of the process, so it plays an important role in the process of large material processing system.
Technical Parameters
Model | Plate Width (mm) | Chain Roller Distance (mm) | Feed Speed (m/s) | Feed Size(mm) | Feed capacity (cbm/h) |
ZBWJ1600-10 | 1600 | 10000 | 0.024-0.24 | 1000 | 450~1500 |
ZBWJ1800-12 | 1800 | 12000 | 0.024-0.24 | 1200 | 600~2000 |
ZBWJ2000-16 | 2000 | 16000 | 0.024-0.24 | 1500 | 1000~3000 |
ZBWJ2500-18 | 2500 | 18000 | 0.024-0.24 | 2000 | 2000~5000 |
